📌LAB POINTS

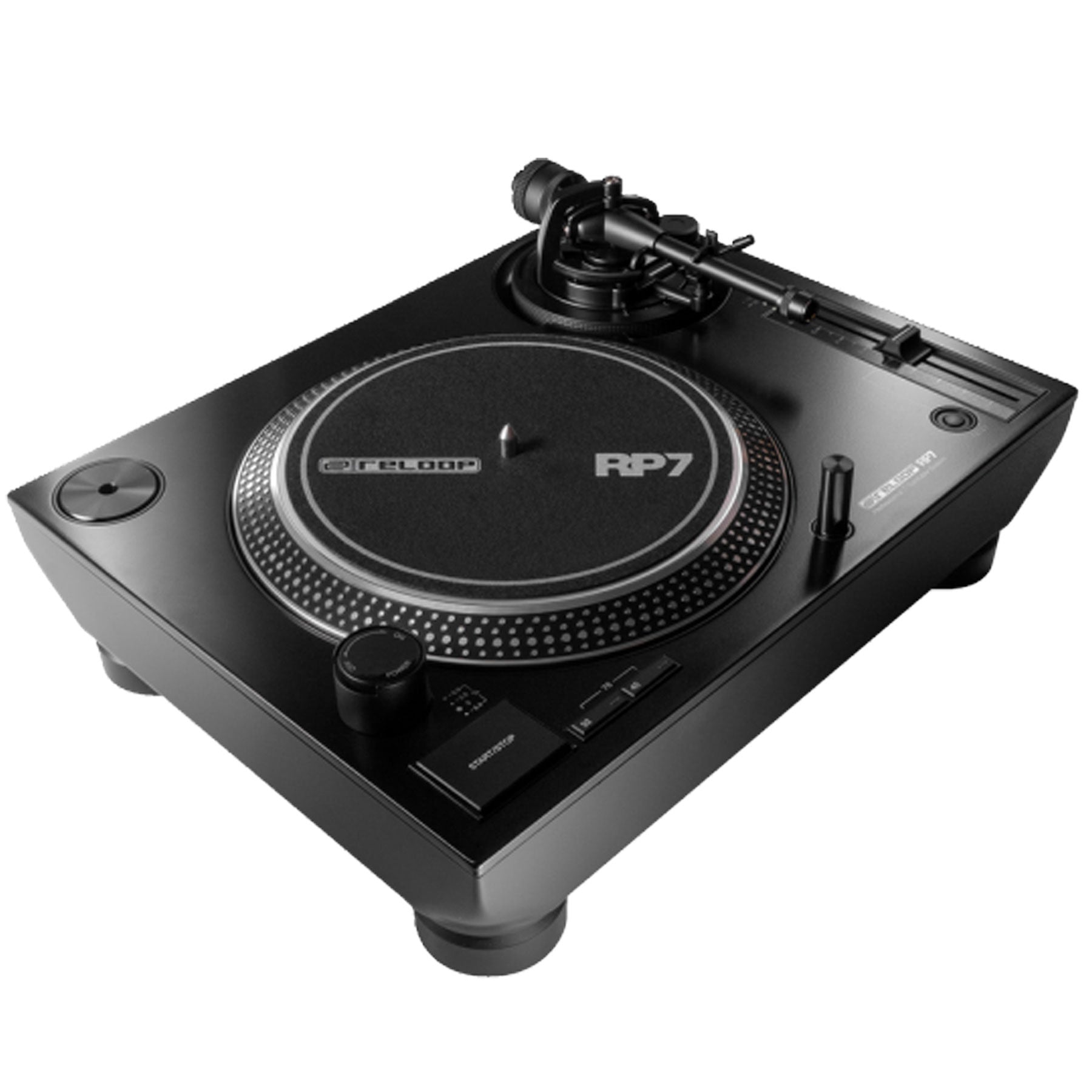

• the world's first series-manufactured direct drive turntable designed for mixing, DJing + scratching 7-inch records

• high-torque (2.5 kg/cm) brushless DC motor, tuned to minimize wow and flutter
• die-cast aluminium platter + integrated switching power supply reduces electrical interference
• straight copper tonearm w/ internal rubber damping to minimize resonance

• statically-balanced tonearm system w/ hydraulic lift, no anti-skating required

• height-adjustable VTA tonearm base
• quartz-controlled motor w/ 3 play speeds: 33 / 45 / 78 RPM motor speeds
• adjustable pitch control range up to ± 35% w/ pitch reset button
• detachable / freely rotatable aluminum LED light

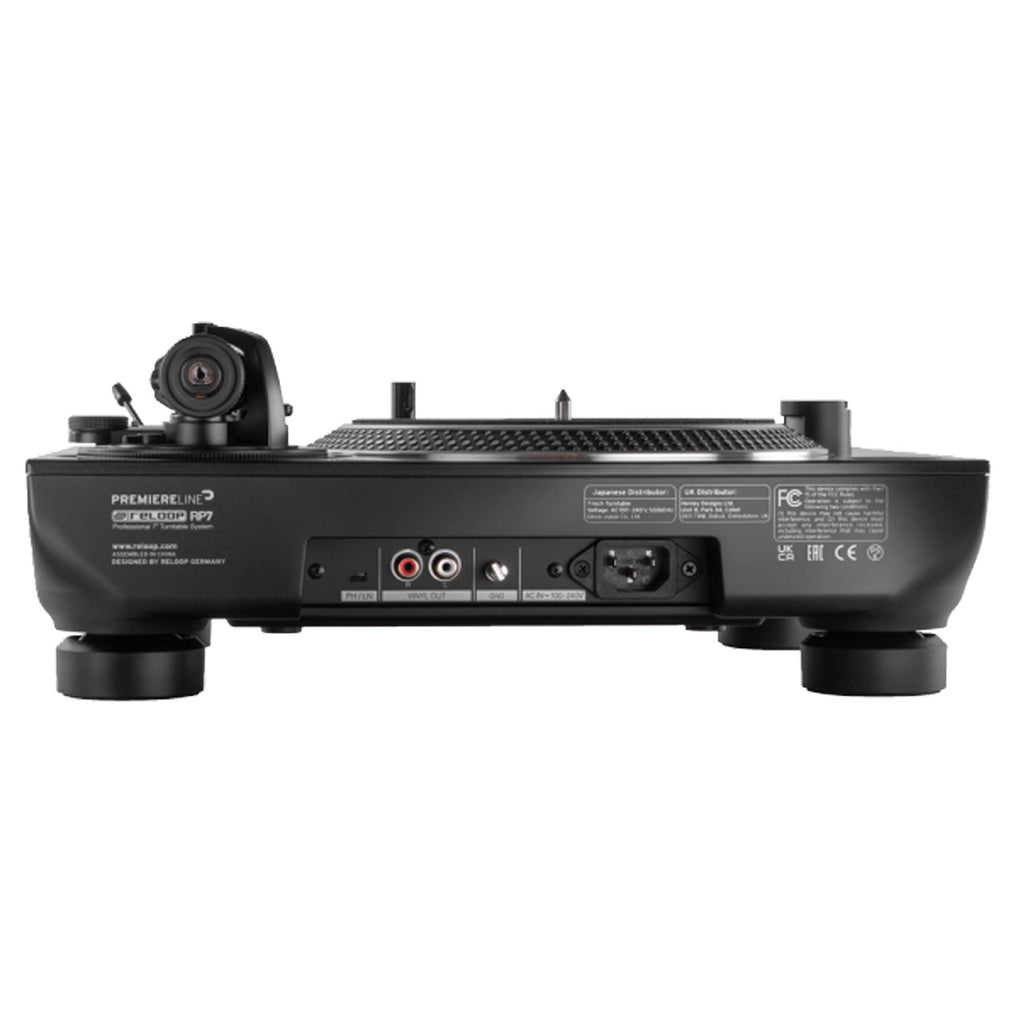

• recessed connection terminal allows flush integration into a typical DJ setup
• deep black metallic finish
• note: headshell and cartridge not included

"As a tribute to 45s culture, the Reloop RP-7 captures the unique appeal of this beloved format and honours those who regard 7" vinyl as more than just a music medium. As the first-ever professionally mass-produced DJ turntable for 7" vinyl, the RP-7 breaks new ground for this passionate community to express themselves and inspire new generations. The straight copper tonearm offers exceptional tracking accuracy, with internal rubber damping to minimise resonance. Its height-adjustable base is adapted from Reloop's best-selling RP-7000 MK2 and RP-8000 MK2 turntable models. Furthermore, the statically balanced Reloop RP-7 system eliminates the need for anti-skating, simplifying installation and reducing potential margins for error." - Reloop

🔎TECH SPECS

• Type: 3-speed fully manual
• Drive: Direct drive

• Motor: 8-pole, 3-phase, high-torque brushless DC motor

• Speeds: 33 ⅓, 45, 78 RPM

• Pitch: ±8, 16, 35%

• Starting Torque: 2.5 kgf/cm (starting at 78 rpm)

• Start-Up Time: < 1 sec.

• Brake System: Electronic brake

• Platter: 215 mm dia. die-cast aluminium

• Tonearm Type: Static balanced straight-shaped tonearm

• Overhang: 0 mm

• Offset Angle: 9,5°

• VTA setting range: 0 - 6 mm

• Effective Tonearm Length: 164.5 mm

• Wow and Flutter: Less than 0.15% WTD at 3 KHz RMS

• S/N Ratio: More than 75 dB (A-w./20 KHz LPF)

• Applicable Cartridge Weight: 15 ~ 20 g (including headshell)

• Connections: 1x Phono/Line Out (gold-plated), 1x GND earth connection

• Power Input: AC 100-240 V, 50/60 Hz

• Power Consumption: 3 W

• Dimensions (WxDxH): 13.78" x 10.63" x 5.47" / 350 x 270 x 139 mm

• Weight: 12.57 lbs / 5.7 kg

📦COMES WITH

• aluminum 45 adaptor

• slipmat + slip sheet

• LED needle light

• counterweight

• phono RCA cable w/ grounding

• power cable

• instruction manual
• note: headshell and cartridge not included
